Display SD JPG ILI9341 TFT

If you are not familiar with SPI, please read Introduction to SPI first.

Materials

  • AMB82-mini x 1

  • ILI9341 TFT LCD with SPI interface x 1

  • microSD card x 1

Example

Common pins in ILI9341 TFT LCD with SPI interface:

  • MOSI: Standard SPI Pin

  • MISO: Standard SPI Pin

  • SLK: Standard SPI Pin

  • CS: Standard SPI Pin

  • RESET: Used to reboot LCD.

  • D/C: Data/Command. When it is at LOW, the signal transmitted are commands, otherwise the data transmitted are data.

  • LED (or BL): Adapt the screen backlight. Can be controlled by PWM or connected to VCC for 100% backlight.

  • VCC: Connected to 3V or 5V, depends on its spec.

  • GND: Connected to GND.

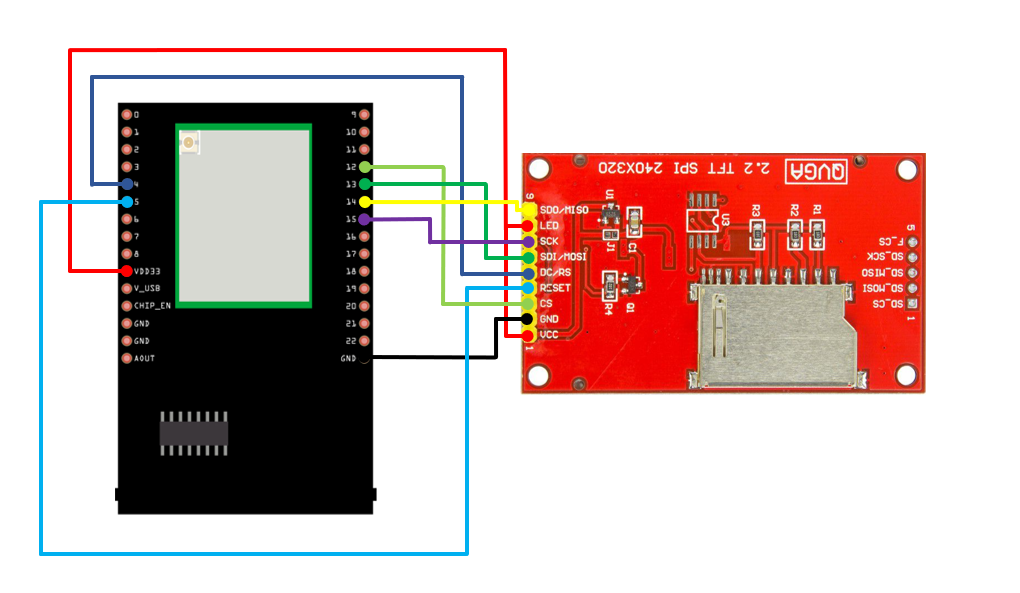

AMB82 MINI and QVGA TFT LCD Wiring Diagram:


Note

Before compilation, kindly install TJpg_Decoder library via Arduino IDE library manager. After installing the TJpg_Decoder library, in the library’s configuration file, User_Config.h, comment out line 5 which reads: #define TJPGD_LOAD_SD_LIBRARY to avoid compilation error.

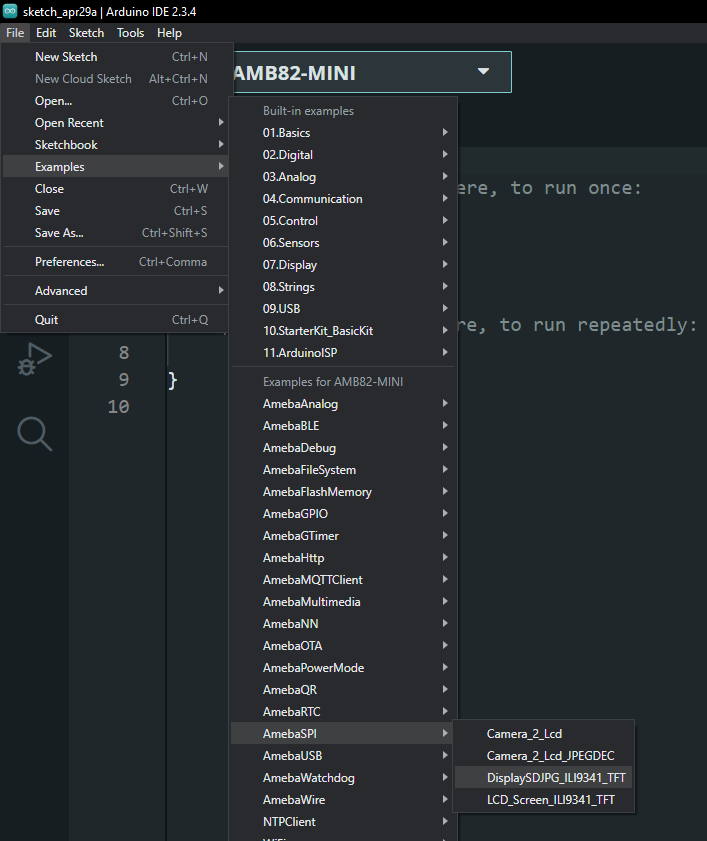

Open the example, File -> Examples -> AmebaSPI -> DisplaySDJPG_ILI9341_TFT

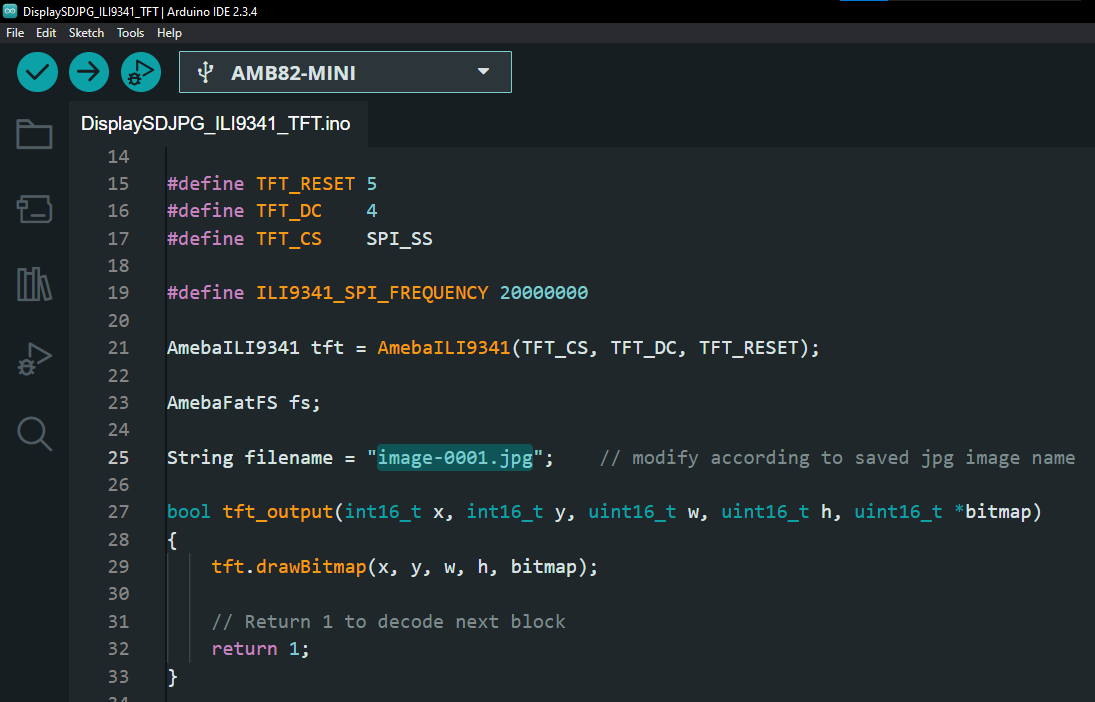

Modify the file name according to the image saved name.


Compile and upload to Ameba, then press the reset button.

Then, you can see the image displayed on the LCD screen.
